Product introduction

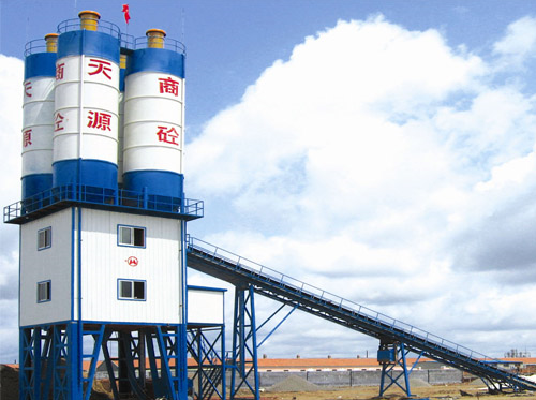

Station automatic control system consisting of aggregate supply, metering, mixing and electrical HZS180 concrete mixing station of the single productivity were 180m3/h, unloading height is 3.8m, can mix various types of concrete construction, suitable for large-scale above, hydropower, roads, ports, bridges, construction of large concrete prefab factory and commodity concrete production plant.

The aggregate used loader feeding, bin four large volume, can store four kinds of aggregates, electronic scale measurement. Equipped with a cement silo and an additive bin, composed of four screw conveyor to the metering hopper feeder, cement and additives by electronic scale accumulated measurement. The water from the water pump, electronic scale measurement, increase the pressure pump outlet, to ensure the quality of water supply. The admixture is measured by the corrosion resistant pump supply electronic scale. The station adopts JS2000Z and JS3000Z twin shaft compulsory mixer as the host, with stirring advantages of good quality and high production efficiency, low noise etc.. Electrical appliances using advanced computer control, with automatic, manual two kinds of operation function, complete the batching, metering, feeding, mixing, unloading and other procedures. Automatic compensation with the ratio of storage gap, equipped with a micro printer, can print the ratio of each tank. Management system can be configured according to the needs.

180 is the product of the mixing station station Qingzhou Huaguang Engineering Automation Equipment Co Ltd HZS series mixing. The host of the Italy shigaoma imported double axle forced type concrete mixer, HPC microcomputer control system of the equipment with high precision, electronic scale measurement, high accuracy, small error, with screen display. Proportioning storage, automatic error compensation and other functions, can realize the manual and automatic control of the mixing process. Equipment is also equipped with a printer system, can achieve centralized control of the entire device and the overall management.

Applicable to all kinds of medium and small prefabricated factory and roads, bridges, water conservancy, ports, terminals and other industrial and civil building construction department mixing dry concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete and mortar.
